Double chain stacking roller machine
Purpose:

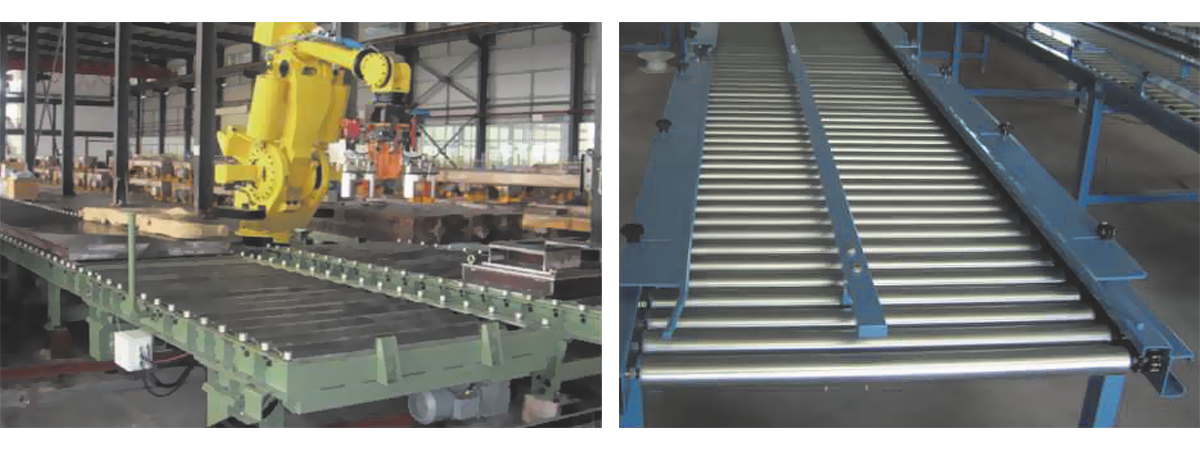

It is applicable to the transportation of various boxes, bags, pallets and other pieces of goods. Bulk materials, small items or irregular items need to be transported on pallets or turnover boxes. The transported items can stay and accumulate temporarily.
Features：
The whole machine is driven by double chain in series, which has the characteristics of large conveying capacity, light operation, accumulation and discharge effect, and can realize a variety of collinear shunt conveying.
|

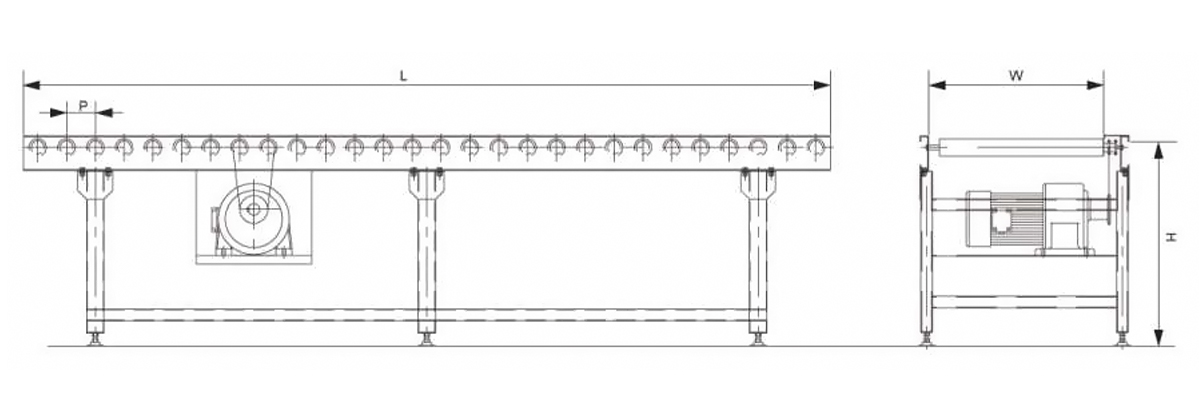

Roller diameter (d)
|
Φ50,Φ60,Φ76,Φ89
|
|
Roller spacing (P)
|
101.5,111,127
|
|
Machine length (L)
|
Max 10m
|
|
Effective width (W)
|
500,600,700, 800,900,1000,1500
|
|
Machine height (H)
|
500-1500
|
|
Frame profile
|
folded plate 120*40*15*3, aluminum profile 80*40
|
|
Outrigger profile
|
square tube 60*40*2, aluminum profile 40*40
|
|
Conveying speed
|
Max 30m/min
|
|
Motor power
|
0.37kw,0.55kw,0.75kw,1.5kw
|
